SIRMAN – TC 32 COLORADO

Sirman-Banner

Technical Data



Model

TC 32 COLORADO

Power

1ph 1840/2.5

3ph 2.200/3

Power source

1ph/3ph

Output/h.

kg/h. 400

Standard plate

ø mm 6

B

mm 401

C

mm 264

D

mm 610

E

mm 465

F

mm 110

G

mm 445

Net weight

Kg 39

Shipping

mm 720x570x770

Gross weight

Kg 41

HS-CODE

84385000

FEATURES:

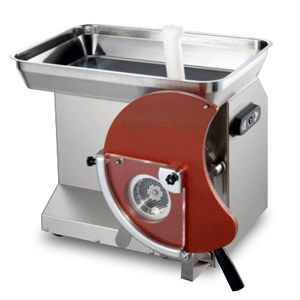

Sirman Meat Grinders , model TC 32 Colorado :

  • AISI 304 stainless steel construction.
  • Powerful IP 55 insulated and fan-cooled motors for continuous use.
  • Endless screw motor-reducer running in an oil-bath enables a long service life .
  • Motor-reducer equipped with a double seal for long, trouble-free service.
  • Convenient, no-tools head lock mechanism.

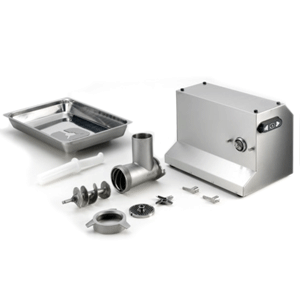

  • Stainless steel mincing head carefully designed for high yeld production, completely removable for ease of cleaning.
  • Feed tray provided with safety interlock CE versions.
  • IP 54 protected, 24 V controls.

Optional:

  • Partial or total Unger system mincing head.
  • Plexiglass feed tray lid.
  • Stainless steel IP 67 protected controls.

TC 32 COLORADO
